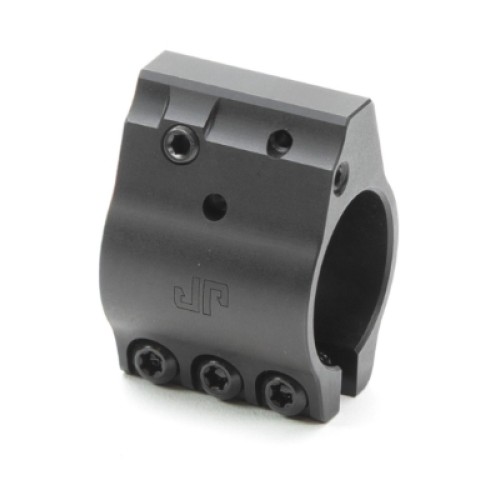

JP Adjustable Gas System

Low profile | 1-Piece

.750 bore

Black stainless steel

Detent Adjustment

The JPGS-5D is our minimized small bore design intended to mount underneath many hand guard models on the market.

This model features our new click-adjustable detent system for precise adjustments and secure retention of your gas screw. Never lose you gas setting or screw.

Features:

• Click-adjustable detent system for repeatable setup and secure retention of gas setting
• Six clicks per rotation of gas screw for finer adjustments
• Easy to access side gas adjustment
• Internally retained detent components means no lost parts

Specifications:

• Barrel Diameter: .750
• Material: 416 stainless
• Finish: Black
• Weight: 2.4 oz.
• Length: .97"
• Height: 1.37" (overall), .79" (over bore)
• Width: 1.16"
• Attachment: 6-32 x 3/8" socket head screws, T10 Torx drive (included)
• (includes 5/64 x 5/16 roll pin for Gas Tubeation)
• Adjustment: 8-32 set screw, 5/64 hex drive (included)
